รายละเอียดสินค้า:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 10.1 inch |
|---|---|---|---|
| Resolution: | 1280×800 | Contrast Ratio: | 800:1 (Typ.) |
| Frequency: | 60Hz | Input Voltage: | 3.3V (Typ.) |
| แสงสูง: | industrial touch screen display,industrial lcd screen |
||

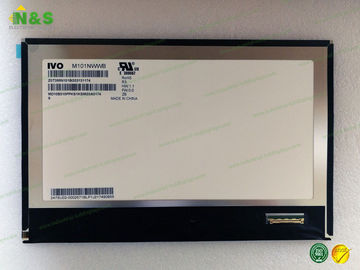

New and original M101NWWB R3 10.1 inch, 1280×800 TFT LCD MODULE Surface Glare (Haze 0%), Hard coating (3H)
M101NWWB R3 Basic Information
| Panel Model | M101NWWB R3 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
M101NWWB R3 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 160g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 216.96×135.6 mm (H×V) |
| Outline Dimension | 229.46×149.1 mm (H×V) |
| Outline Depth | 2.5/4.56 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101NWWB R3 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33/1.43 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C023SN21-0 | IVO | 2.3" | 240×320 |
| C039SWP4-0 | IVO | 4.0" | 480×800 |
| C039SWN1-1 | IVO | 4.0" | 320×480 |
| F101NWN7-0 | IVO | 10.1" | 1920×1200 |
| C043GW32 R1 | IVO | 4.3" | 480×272 |
| C045SWY1-4 | IVO | 4.5" | 480×854 |
| C050SWY7-1 | IVO | 5.0" | 480×854 |
| C050SWY7-0 | IVO | 5.0" | 480×854 |
| C022SN91-0 | IVO | 2.2" | 176×220 |
| F054SWN1-1 | IVO | 5.4" | 540×960 |
| C060SWZ1-1 | IVO | 6.0" | 540×960 |
| C050SWZ3-0 | IVO | 5.0" | 540×960 |
