รายละเอียดสินค้า:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 10.1 inch |
|---|---|---|---|
| Resolution: | 1024×600 | Input Voltage: | 3.3V (Typ.) |
| Active Area: | 222.72×125.28 mm | Outline: | 235×143×5.2 mm |
| แสงสูง: | industrial touch screen display,industrial lcd panel |
||

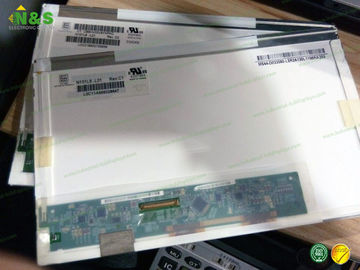

Normally White N101L6-L01 TFT LCD Module CMO 10.1 inch Surface Antiglare (Haze 25%), Hard coating (3H)
N101L6-L01 Basic Information
| Panel Model | N101L6-L01 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N101L6-L01 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 180/190g (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.34×128.1 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 4.9/5.2 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N101L6-L01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Packing & Delivery for our LCD Screen Panel Replacements:
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
