รายละเอียดสินค้า:
|
| Panel Size: | 10.1 inch | Resolution: | 1280×800 |
|---|---|---|---|
| Contrast Ratio: | 600:1 (Min.) | Frequency: | 60Hz |
| Input Voltage: | 3.3V (Typ.) | ||
| แสงสูง: | industrial lcd screen,industrial lcd panel |
||

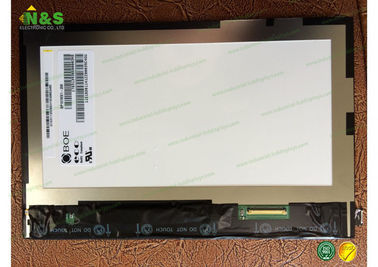

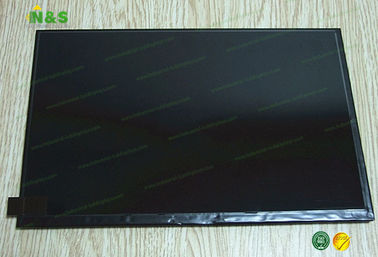

Normally Black 10.1 inch BP101WX1-206 1280×800 with 216.96×135.6 mm Active Area Contrast Ratio 600:1 (Min.)
BP101WX1-206 Basic Information
| Panel Model | BP101WX1-206 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
BP101WX1-206 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 150g (Max.) |
| Surface | Hard coating (3H), Antireflection |
| Active Area | 216.96×135.6 mm (H×V) |
| Bezel Area | 220.46×139.25 mm (H×V) |
| Outline Dimension | 228.6×149.2 mm (H×V) |
| Outline Depth | 2.39/4.59 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our Company Strength in LCD Screen Sourcing:
1.ISO9001 certificated, Factory Direct Supplied
2.Competitive Price and Short Lead-time
3. Professional Team with Rich Experiences in LCD screen international trade communication.
4. Small MOQ Support & Fast Response to Customers
5. Long Product Life Time
6. 1 Year warranty for our LCD screen replacements.
BP101WX1-206 Optical Features
| Display Mode | ADS, Normally Black, Transmissive |
| Brightness | 330 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Min.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 50% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Typ.)(5 points) |
| Sunlight Readable | N |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BA070WV4-200 | BOE | 7.0" | 800×480 |
| BP101WX7-300 | BOE | 10.1" | 1280×800 |
| BP070WS6-100 | BOE | 7.0" | 1024×600 |
| HV550WU2-202 | BOE | 55" | 1920×1080 |
| HVA40WV2-D00 | BOE | 4.0" | 480×800 |
| BT024QVMQ102 | BOE | 2.4" | 240×320 |
| BF043WVG-100 | BOE | 4.3" | 480×800 |
| BF040WVME502 | BOE | 4.0" | 480×800 |
| BF045WVQ-100 | BOE | 4.5" | 480×854 |
| BP039WV4-500 | BOE | 4.0" | 480×800 |
| BT028WQME601 | BOE | 2.8" | 240×400 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
