รายละเอียดสินค้า:
|
| Panel Type: | a-Si TFT-LCD | Resolution: | 1024×768 |
|---|---|---|---|
| Contrast Ratio: | 600:1 (Typ.) | Surface: | Antiglare |
| Outline: | 326.5×253.5×12 mm | Active Area: | 304.128×228.096 mm |
| แสงสูง: | industrial touch screen display,industrial lcd screen |
||
TCG057QV1AC-G10 15.0 inch Normally White resolution 1024×768 Outline 326.5×253.5×12 mm Frequency 60Hz
TMS150XG1-10TB Basic Information
| Panel Model | TMS150XG1-10TB |
| Panel Brand | AVIC |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 55 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | TC0’5.0 Compliance |
TMS150XG1-10TB Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.3/12.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
TMS150XG1-10TB Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.20/1.30 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
Packaging & Delivery

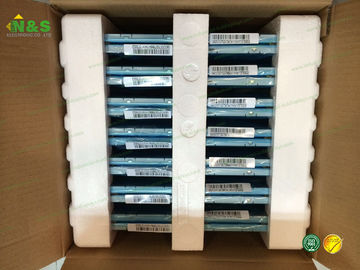

Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
