รายละเอียดสินค้า:
|
| Panel Size: | 15.0 inch | Resolution: | 2048×1536 |
|---|---|---|---|
| Active Area: | 304.1×228.1 mm | Contrast Ratio: | 400:1 (Typ.) |
| Display Colors: | 262K (6-bit) | Input Voltage: | 3.3V (Typ.) |
| แสงสูง: | industrial touch screen display,industrial lcd screen |
||

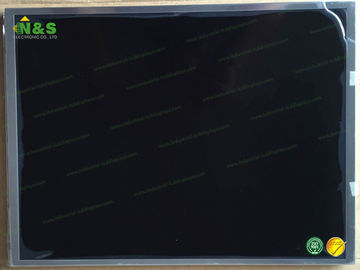

Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)
IAQX10M Basic Information
| Panel Model | IAQX10M |
| Panel Brand | IDTech |
| Descrition | a-Si TFT-LCD ,15.0 inch, 2048×1536 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
IAQX10M Mechanical Features
| Dot Resolution | 2048(RGB)×1536 (QXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 171 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0495×0.1485 mm (H×V) |
| Pixel Pitch | 0.1485×0.1485 mm (H×V) |
| Weight | 1.06/1.10Kgs (Typ./Max.) |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.8×231.6 mm (H×V) |
| Outline Dimension | 326×244.5 mm (H×V) |
| Outline Depth | 13.0/13.3 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
IAQX10M Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 30/30 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
