รายละเอียดสินค้า:
|
| Panel Type: | a-Si TFT-LCD | Panel Size: | 12.1 inch |
|---|---|---|---|
| Resolution: | 1024×768 | Outline: | 261×198×5 mm |
| Contrast Ratio: | 500:1 (Typ.) | Frequency: | 60Hz |
| แสงสูง: | industrial touch screen display,industrial lcd panel |
||

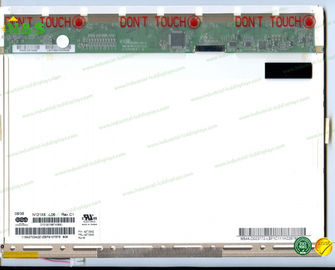

Normally White N121X5-L061 12.1 inch 1024×768 new and original Contrast Ratio 500:1 (Typ.) Input Voltage 3.3V (Typ.)
N121X5-L06 Basic Information
| Panel Model | N121X5-L06 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N121X5-L06 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 260g (Typ.) |
| Surface | Antiglare (Haze 42%), Hard coating (2H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 250.5×188.9 mm (H×V) |
| Outline Dimension | 261×198 mm (H×V) |
| Outline Depth | 4.7/5.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (6-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
