รายละเอียดสินค้า:
|
| Panel Size: | 7.0 inch | Resolution: | 800×1280 |
|---|---|---|---|
| Active Area: | 94.2×150.72 mm | Contrast Ratio: | 700:1 (Typ.) |
| Input Voltage: | 3.3V (Typ.) | ||
| แสงสูง: | industrial lcd screen,industrial lcd panel |
||

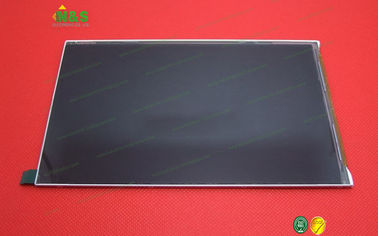

Normally Black CLAA070WP03XG CPT Industrial LCD Displays with 94.2×150.72 mm Active Area Frequency 60Hz
CLAA070WP03XG Basic Information
| Panel Model | CLAA070WP03XG |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,7.0 inch, 800×1280 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 65 °C |
| Remarks | for Nexus 7 |
CLAA070WP03XG Mechanical Features
| Dot Resolution | 800(RGB)×1280 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 215 PPI |
| Aspect Ratio | 10:16 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.03925×0.11775 mm (H×V) |
| Pixel Pitch | 0.11775×0.11775 mm (H×V) |
| Weight | 101g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 94.2×150.72 mm (H×V) |
| Outline Dimension | 104.32×161.67 mm (H×V) |
| Outline Depth | 2.3/4.05 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
CLAA070WP03XG Optical Features
| Display Mode | HFFS, Normally Black, Transmissive |
| Brightness | 450 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.25/1.39 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
