รายละเอียดสินค้า:
|
| Panel Type: | a-Si TFT-LCD | Surface: | Glare (Haze 0%) |
|---|---|---|---|
| Contrast Ratio: | 500:1 (Typ.) | Panel Size: | 15.6 inch |
| Resolution: | 1366×768 | ||
| แสงสูง: | industrial lcd screen,industrial lcd panel |
||

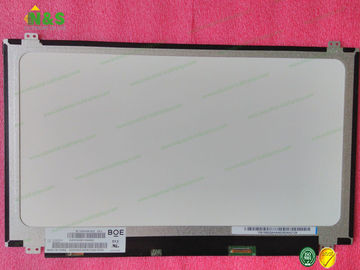

NT156WHM-N32 15.6 inch resolution 1366×768 Surface Glare (Haze 0%) Contrast Ratio 500:1 (Typ.) Frequency 60Hz
NT156WHM-N32 Basic Information
| Panel Model | NT156WHM-N32 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
NT156WHM-N32 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Glare (Haze 0%) |
| Active Area | 344.232×193.536 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.8 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
