รายละเอียดสินค้า:
|
| Panel Size: | 10.1 inch | Resolution: | 1280×800 |
|---|---|---|---|
| Contrast Ratio: | 800:1 (Typ.) | Frequency: | 60Hz |
| แสงสูง: | industrial touch screen display,industrial lcd screen |
||

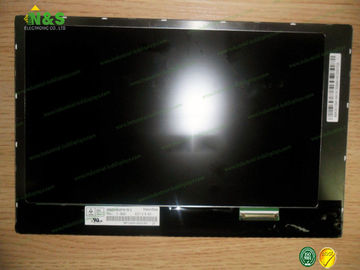

HSD101PWW1-B00 10.1 inch HannStar Normally Black Outline 229.46×149.2×5 mm Input Voltage 3.3V (Typ.)
HSD101PWW1-B00 Basic Information
| Panel Model | HSD101PWW1-B00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HSD101PWW1-B00 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 170g (Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H), Reflection 1.5% (Max.) |
| Active Area | 216.96×135.6 mm (H×V) |
| Bezel Area | 220.76×139.00 mm (H×V) |
| Outline Dimension | 229.46×149.2 mm (H×V) |
| Outline Depth | 3.0/5.0 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD101PWW1-B00 Optical Features
| Display Mode | HS-IPS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.50 (Max.)(5/13 points) |
| Sunlight Readable | N |
Our Advantage
As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:
We Can Do for You:
1) One-to-one service with efficient & professional support;
2) Protection of your design and all your private information;
3) We could supply different hard disk for you.
4) Quality stability, can to provide certification of products;
5) Convenient payment methods: PayPal, T/T and Western Union;
6) Speedy shipment: we could arrange the shipment within 1-3 business days.
7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.
8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| NL204153BC21-09 | NLT | 21.3" | 2048×1536 |
| NL128102BC31-02 | NLT | 20.1" | 1280×1024 |
| NL8060BC26-28D | NLT | 10.4" | 800×600 |
| NL280210AM15-04A | NLT | 21.3" | 2800×2100 |
| NL2432HC22-50K | NLT | 3.5" | 240×320 |
| NL160120BC27-19E | NLT | 21.3" | 1600×1200 |
| NL204153BM21-05 | NLT | 21.3" | 2048×1536 |
| NL204153BM21-04A | NLT | 21.3" | 2048×1536 |
| NL204153BM21-04 | NLT | 21.3" | 2048×1536 |
| NL204153BM21-02 | NLT | 21.3" | 2048×1536 |
| NL6448BC33-29 | NLT | 10.4" | 640×480 |
| NL10276BC20-11 | NLT | 10.4" | 1024×768 |
| NL10276BC28-01 | NLT | 14.1" | 1024×768 |
